Thông tin chi tiết sản phẩm:
|
| Tốc độ hoạt động: | 50-75/phút/tối đa | Chiều dài ống: | 50-250mm |
|---|---|---|---|
| Lợi thế: | Dễ dàng vận hành | Tình trạng: | Mới |
| Hệ thống hoạt động: | Màn hình cảm ứng | Đường kính ống phù hợp: | 13-50mm |
| Mục: | Máy làm đầy ống | Động cơ chính: | 2,2kw |
| Trường hợp vật liệu cơ thể: | 304 | ||
| Làm nổi bật: | automatic laminate tube filling machine,tube filling machine with touch screen,high-speed tube filling machine 75pcs/min |
||

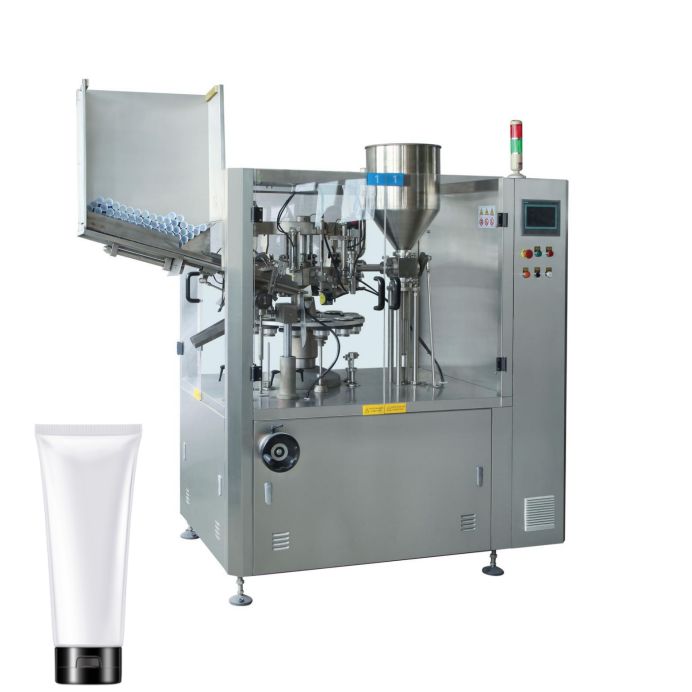

High-performance filling machine for Vaseline cream, glue, toothpaste and similar products
| Attribute | Value |
|---|---|
| Operation Speed | 50-75/min/max |
| Tube Length | 50-250mm |
| Operation System | Touch Screen |
| Suitable Tube Diameter | 13-50mm |
| Main Motor | 2.2KW |
| Case Body Material | 304 Stainless Steel |
| Condition | New |
This high-technical equipment was developed by introducing advanced overseas technology and integrating GMP requirements. Features PLC controller with automatic operation from liquid/high-velocity material filling to batch number printing (including manufacture date). Ideal for plastic tube and multiple tube filling and sealing in cosmetic, pharmaceutical, food, and adhesive industries.
| Parameter | Specification |
|---|---|
| Production capacity | 50-75pcs/min |
| Filling volume | 5-250ml |
| Filling accuracy | ≤±1% |
| Tube length | 50-210mm |
| Tube diameter | Φ10-Φ50mm |
| Working pressure | 0.5-0.6MPa |
| Compressed air consumption | 1.1m³/min |
| Motor power | 1.1KW |
| Dimensions | 1950×1000×1800mm |
| Weight | 1200Kg |
Wenzhou Trustar Machinery Technology Co., Ltd. specializes in packaging machine equipment production and trading. With established supplier relationships ensuring high-quality products and active participation in international trade, providing customized solutions and premium after-sales service.
Approximately 30 days
Suggest shipping by LCL (Less than Container Load)
Yes, we have been manufacturing packaging machinery for over 17 years.
Standard terms: 40% T/T in advance, balance paid before shipping.
